Technical Overview of Pulsed Plasma Nitriding (Ion Nitriding)
In modern high-precision manufacturing, mechanical components are subjected to severe wear, high fatigue cycles, and corrosive environments. Standard heat treatments often fall short because their high operating temperatures deform precision parts.
To overcome these challenges, Jiangsu Juchuang Automation Technology Co., Ltd. offers state-of-the-art Pulsed Plasma Nitriding (Ion Nitriding) Technology & Equipment. This advanced vacuum surface treatment uses an electrical glow discharge to introduce active nitrogen atoms directly into the metal's outer layer. It creates an extremely hard, wear-resistant surface while keeping the core of the part tough and flexible, providing unmatched dimensional stability.
Core Operational Advantages
Unlike traditional gas nitriding or highly toxic liquid salt-bath treatments, Juchuang’s pulsed plasma nitriding systems offer clear technical and economic benefits:
-
Zero Thermal Distortion: Operating at low temperatures from 300°C to 550°C, our process prevents precision-machined parts from warping, bending, or changing size. This completely removes the need for costly post-treatment machining or grinding.
-
Fully Controllable Case Chemistry: Operators can precisely control the growth of the compound zone (known as the "white layer"). This flexibility prevents surface brittleness and ensures excellent wear resistance under heavy impacts.
-
30% to 60% Faster Cycles: The highly energetic ionized gas field accelerates the diffusion of nitrogen at the atomic level. This significantly shortens process times, reduces energy consumption, and increases your workshop's daily output.
-
Eco-Friendly and Clean Production: The treatment is conducted inside a fully sealed vacuum chamber using only harmless Nitrogen (N₂) and Hydrogen (H₂) gases. It produces no toxic fluids, zero hazardous waste, and safe working conditions.
Technical Specifications and Parameters
Every system is engineered with high-precision hardware to guarantee identical, repeatable results for every single production run. Below are the copy-safe technical specifications of our standard equipment:
|
Technical Metric |
Specification & Control Range |
|---|---|
|
Working Vacuum Range |
10 Pa to 1000 Pa (Ensures a highly stable plasma glow) |
|
Ultimate Base Vacuum |
0.01 Pa (1 x 10^-2 Pa) (Guarantees an oxygen-free zone) |
|
Power Supply System |
High-Frequency Pulsed DC (PDC) |
|
Pulse Frequency Range |
1 kHz to 20 kHz |
|
Operating Temperature |
350°C to 580°C |
|
Temperature Uniformity |
±5°C (Maintained across the entire heating zone) |
|
Temperature Sensor Type |
Flexible thermocouple sensors directly measuring workpieces |
|
Achievable Surface Hardness |
650 HV to 1200 HV (Depending on the base alloy steel) |
|
Nitriding Diffusion Depth |
5 μm to 1000 μm (Fully adjustable via PLC parameters) |
|
Microstructure Quality |
Extremely dense compound layer with zero porosity or cracking |
The entire process is managed by an integrated PLC and Industrial PC control system. This digital brain tracks all physical curves in real-time, delivering full closed-loop control over gas flow rates, voltage, and heating loops to ensure absolute batch-to-batch consistency.
Standardized 5-Step Operational Process
Achieving a flawless surface finish requires a systematic, automated workflow. Our equipment carries out each cycle through five highly controlled steps:
-
Preparation and Loading: Components are thoroughly cleaned and dried to remove surface grease, oils, and oxide films. They are placed onto custom-designed, high-temperature fixtures to ensure even distribution inside the furnace.
-
Vacuum Purging: The furnace chamber is sealed. A high-capacity vacuum package (featuring mechanical and Roots pump sets) quickly draws the internal pressure down to less than 10 Pa to remove all air and humidity.
-
Gas Introduction & Glow Initialization: The system feeds a precise ratio of Nitrogen (N₂) and Hydrogen (H₂) gas into the chamber. Applying a high Pulsed DC voltage initiates a uniform, deep purple ionized plasma cloud that wraps completely around every workpiece, even inside narrow channels or blind holes.
-
Heating & Nitriding Diffusion: High-energy nitrogen ions bombard the surface of the workpieces, generating uniform heat and starting the chemical diffusion. Active nitrogen atoms penetrate deep into the steel matrix, building a tough, wear-resistant compound layer.
-
Cooling & Part Unloading: Once the process is complete, the power is shut off and the gas flow is stopped. The furnace cools using active gas circulation. Once the temperature drops below the safe threshold of 150°C, the operator opens the furnace to retrieve the finished parts.

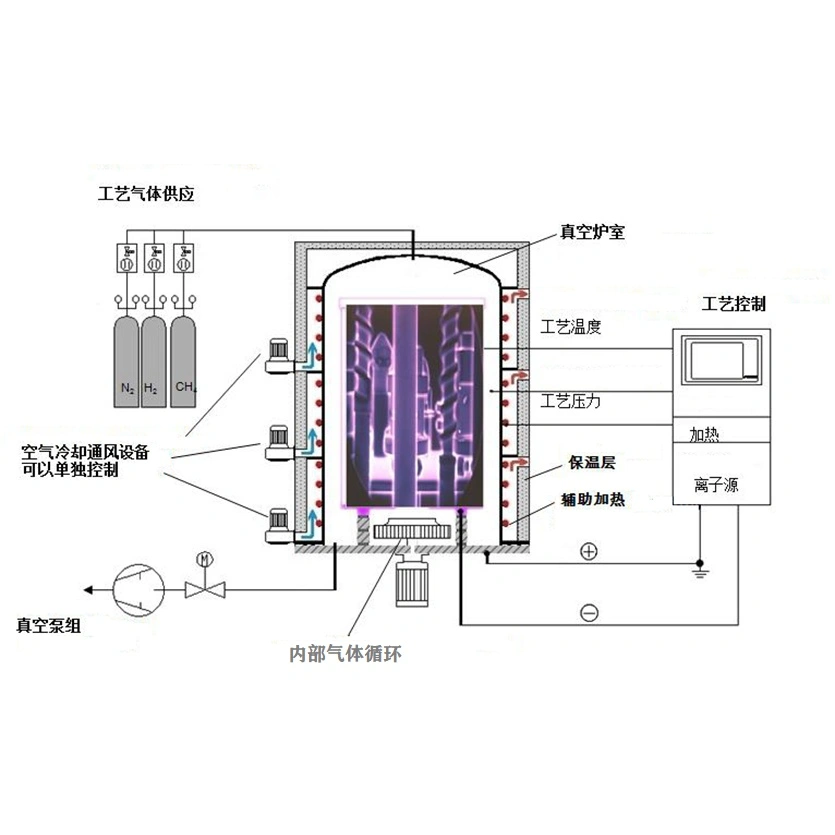

High-Integrity System Architecture
Our pulsed plasma nitriding systems are comprised of six highly integrated, industrial-grade functional modules:
-
Vacuum Chamber: Built with a premium hot-wall structure that provides high vacuum integrity, electrical shielding, and superb thermal isolation.
-
Vacuum Acquisition System: Consists of high-performance mechanical and Roots pumps to quickly establish clean processing conditions.
-
Gas Control System: Features high-precision Mass Flow Controllers (MFCs) to manage process gas ratios with flow-rate accuracy.
-
Pulsed DC Power Supply: A proprietary high-frequency pulse generator engineered to suppress arc discharge and prevent workpieces from sustaining edge burns.
-
Closed-Loop Thermal Control: Heating elements and thermocouple feedback loops work together to manage temperatures across the entire hot zone.
-

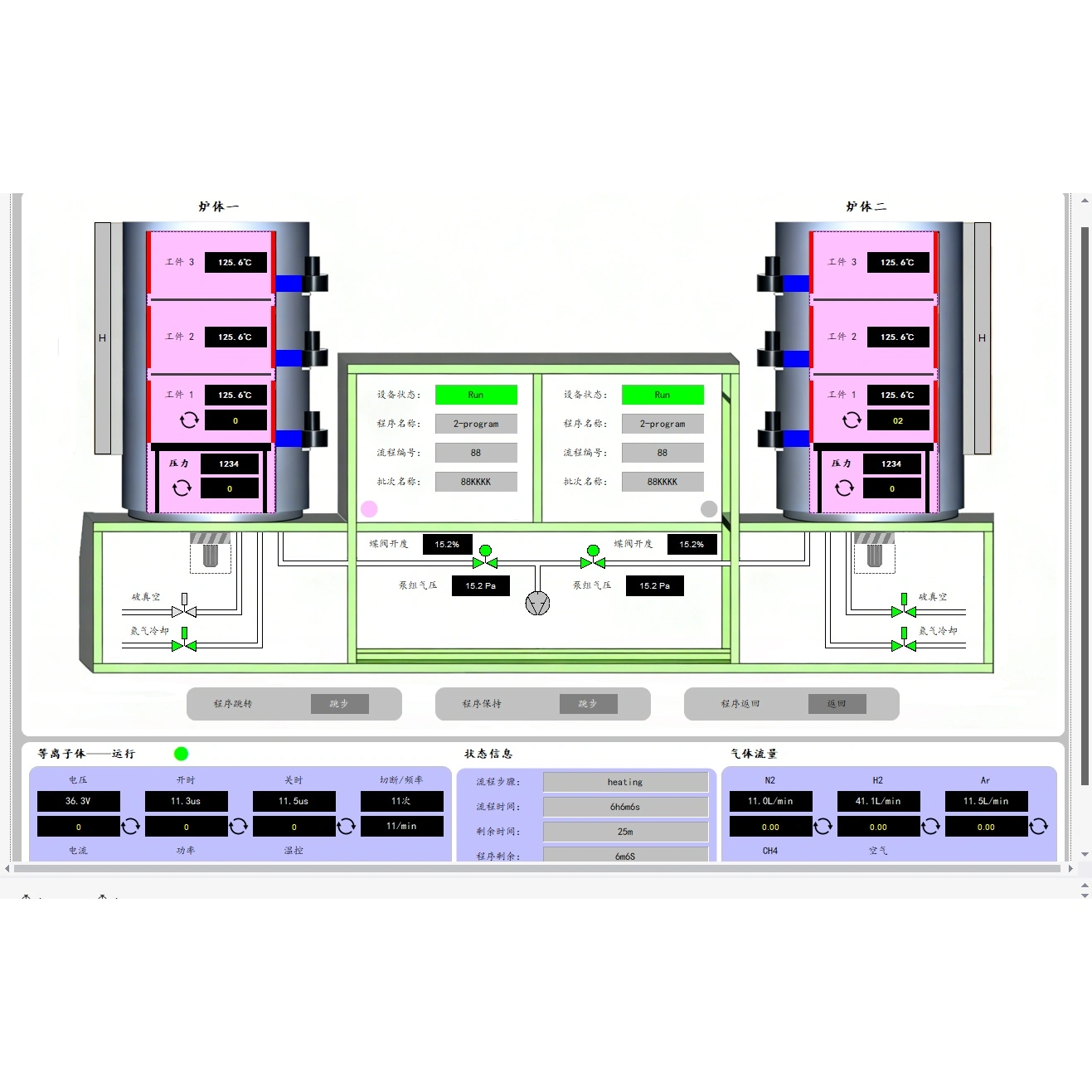

Intelligent PLC & HMI Monitoring System: A smart control center that stores user recipes, displays real-time parameters, and logs process data automatically.
